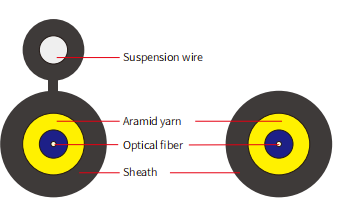

Round drop cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network. The following shows the cross section of a round drop cable with one tight buffered optical fiber.
Product Description
Round drop cable is self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications. This type of fiber drop cable is fixed to a steel wire as showed in the following picture. Typical fiber counts of drop cable are 1-4.
Technical data:
Fiber: Up to 4, tight buffered fiber
Fiber Types: Single-mode or multimode
Cable Types: Round drop cable
Strength Member:Aramid yarn
Sheath Options: Single LSZH sheath
Operating Temperature: -20℃~+70℃
Compliances: In Accordance with IEC, ITU and EIA standards
Features:
Compactandlightweight, lowpurchasing and construction costs;
Easy connectwithout splicing,fastandconvenient;
Excellenttensileandcrushperformance, the span distance for self-support type can be up to 50 meters; Flameretardant LSZHjacketmeets relevant fire protection requirements inindoorenvironment; High carbon steel messenger wire enables the self-support type t have excellent tensil estrength..
