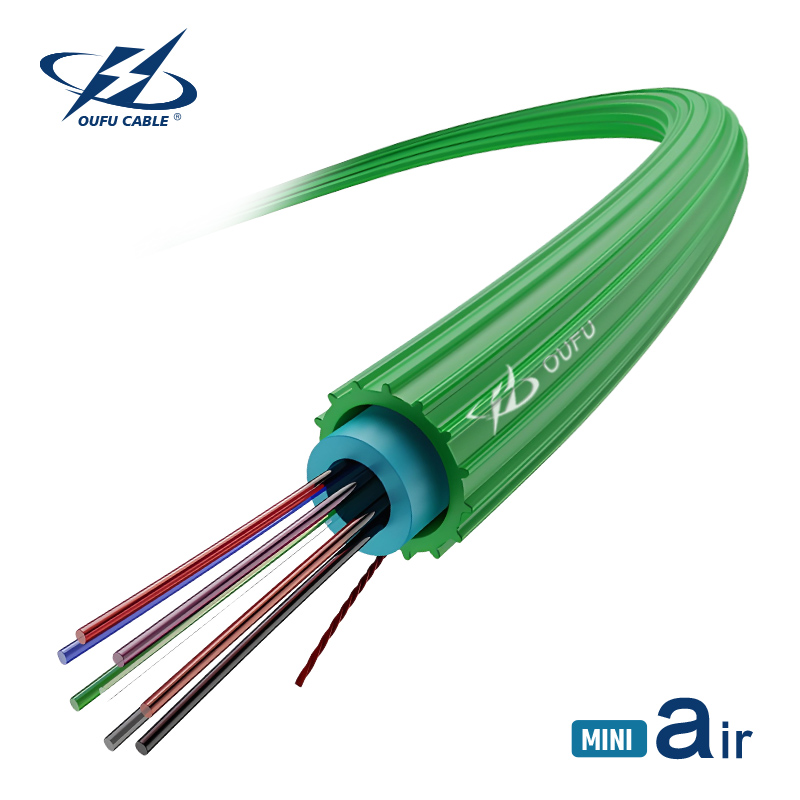

2-24 core super mini air-blown micro fiber cable

2-24 core super mini air-blown micro fiber cable

super mini air-blown micro cables use air-blown laying methods to connect optical branch points and user access points. The optical cable has good mechanical and temperature properties, high tensile strength guaranteed by fiberglass, good flexibility, easy construction, and low cost.
Air-Blown Micro Cable
Description

    1. Structural optimization design, with the best fiber capacity;
    2. The remaining length of the optical fiber is precisely controlled and the performance of the optical cable is stable;
    3. Dry cable core blocks water is low-carbon and environmentally friendly;
    4. The innovative design of the sheath surface enhances air-blowing performance.

    1. Air blowing installation
    2. Core network
    3. Metropolitan Area Network (MAN)
    4. Access network
    5. Backbone network
    6. Local Area Network (LAN)
    7. FTTx network
    8. Datacenter

    Micro cable model

    GCYFXY--xxF (MTE+outer diameter )

    MTE1.8

    MTE2.0

    MTE2.3

    MTE2.5

    MTE2.8

    Number of fiber cores

    2~4

    2~4

    6~12

    2~12

    14~24

    HDPE outer sheath thickness

    nominal： 0.20mm, smallest: 0.15mm

    Nominal outer diameter

    1.8mm

    2.0mm

    2.3mm

    2.5mm

    2.8mm

    Approximate weight

    2.6kg/km

    4.0kg/km

    5.0kg/km

    6.0kg/km

    7.0kg/km

    Fiber optic cable attenuation (single-mode fiber)

    1310nm/1550nm≤0.35/0.22dB/km<

    Maximum pulling force

    40N

    40N

    50N

    60N

    60N

    Maximum crushing force

    600N/100m









    Allowed minimum static, dynamic bending radius

    10 times/20 times the outer diameter of the optical cable

    Applicable temperature range

    Storage -30～+60℃; Installation -10～+40℃; Operation -20～+50℃

    Optical cable life (estimated)

    25 years
